PPGI roofing sheet offers beauty and durability to suit all your agricultural, r
PPGI roofing sheet offers beauty and durability to suit all your agricultural, r
PPGI roofing sheet offers beauty and durability to suit all your agricultural, residential and commercial needs. As a wholesale supplier and manufacturer in China, We have a factory to provide a wide range of PPGI roofing sheets with different designs and sizes. The available thickness is from 0.2 to 0.8 mm, and the width is from 600 to 1,250mm. Besides, the colors and patterns are customizable. More than that, we will offer a competitive price for bulk orders. If you have special requirements, welcome to talk with us!
PPGI Tile Profile Sheet

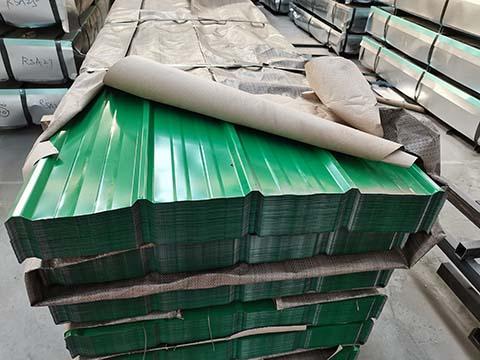

Green PPGI Roofing Sheet
Tile Profile Roofing Sheet

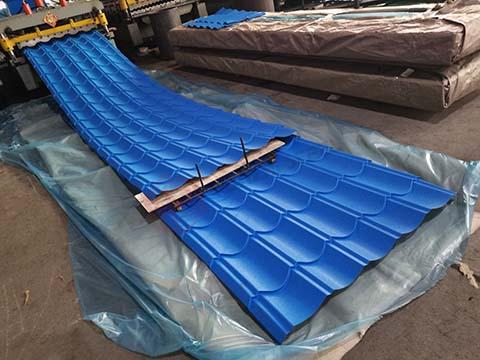

Blue PPGI Tile Profile Sheet
Below are more parameters for your reference.
| Item | PPGI Roofing Sheet |
| Thickness | 0.2 mm-0.8 mm |
| Overall Width | 750 mm-1,500 mm |
| Effective Width | 600 mm-1,250 mm (Common width: 914mm, 1,000mm,1200mm, 1220mm) |
| MOQ | 10 Tons or 500 pieces |
| Design | Wave, Trapezoid, Tile, etc. |
| Colors | As per RAL Color (custom patterns are available) |
| Coatings | PE, SMP, HDP, PVDF |
| Coating Thickness | Top: 11-35 μm Back: 5-14 μm |
| Certificates | ISO 9001, SGS, CE, BV |
| Features | Durable Coating, Corrosion Resistant, Waterproof |
| Package | Standard Export Package |

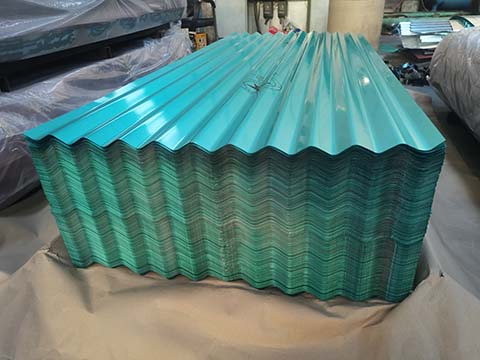

Wavy PPGI Roof Sheet

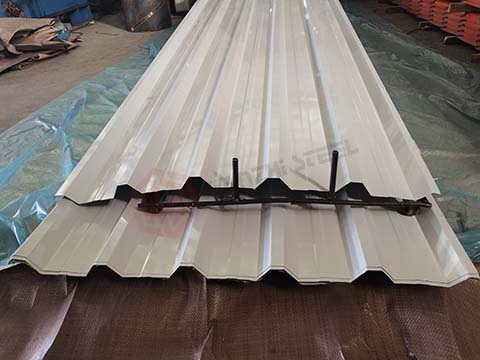

White PPGI Roofing Sheet
1. Agricultural applications include, but are not limited to, greenhouses, chicken coops, stables, haylofts, and barns.
2. Residential applications include houses, makeshift houses, apartments, towers, garages, storage sheds, etc.
3. Commercial applications, for example, factories, warehouses, manufacturing plants, department stores, office buildings, etc.
4. Public buildings, such as cinemas, exhibition halls, gyms, terminal buildings, schools, and hospitals.
Agriculture Uses
For Commercial Uses
Civil Use
Here is a video, which was taken at our factory. It shows the profiling process of PPGI sheets.
The weight of a roofing sheet can be calculated according to the following formula:
Thickness (mm) * Width (m) * Length (m) * 7.85 = (kg/pcs)
Please note that the width here refers to the overall width rather than the effective width.

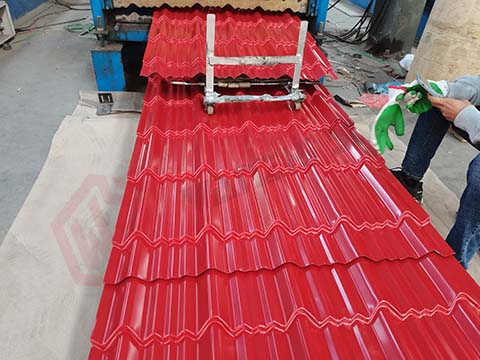

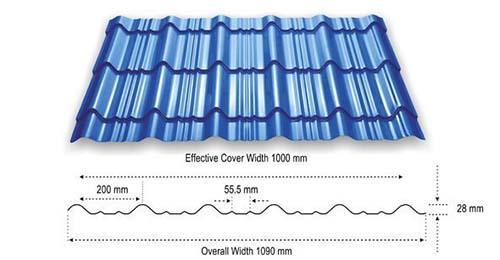

PPGI Roofing Tile
Let’s take the pictures left for example. As the picture shows, the overall width is 1.09 m. If the roofing tile is 2 m in length, and 0.5 mm in thickness, then the weight is about 8.5565 kg per piece (0.5*1.09*2*7.85). The density of carbon steel is about 7.85 g/cm3. The coating is very light to be neglected. In this way, you can know the weight of each roofing sheet. For more details, you can contact our professional sales manager.
The PPGI roofing sheets price is from 700 to 1,400 USD in the market. It depends on the thickness of base metal, coatings, colors, the thickness of coatings, suppliers, etc. In 2022, the PPGI prices go up and down repeatedly. But compared to the price in 2021, 2022 prices are a bit lower overall. If you are looking for colour coated roofing sheets, please contact us for the latest price.
Galvanized color-coated roofing sheet is widely used in commercial, agricultural, industrial, and civil buildings. It is because of its many benefits, such as:
The color-coated GI roofing sheet uses zinc coated steel as substrate, which is durable. Then some layers of coatings are applied to enhance its corrosion resistance. So the service life of the PPGI roofing sheet will be more than 15 years.
The profile design of colored galvanized roofing can reduce sound resonance and isolate noise. Also, due to its low thermal conductivity, it can help to keep your home cooler on hot, sunny days.
PPGI roofing sheet is light in weight so that it is easy to transport and install. Using color coated roofing sheets can shorten the construction period by 40%. Also, colored galvanized roofing can be recycled, especially for mobile houses. It can lower your construction cost.
The galvanized colour coated roofing sheet is rich in colors and unique in design, which can be used for various styles. Also, the color coated roofing looks great, which means no surface decoration is needed.

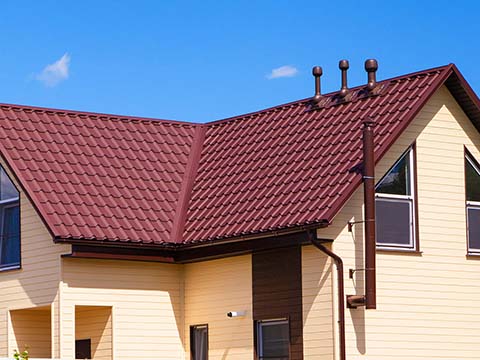

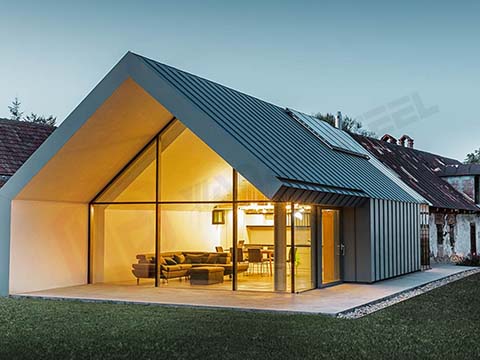

Home Uses

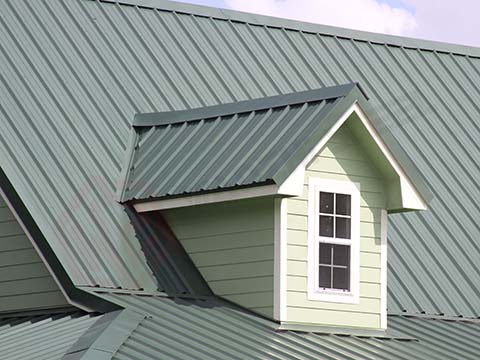

Simple Style
Galvanized colour coated roofing sheets are waterproofing. In rainy areas, the corrugated design can help rainwater gather and flow down quickly.
PPGI sheet keeps the mechanical properties of base metal, such as high tensile strength, great toughness, etc. More than that, it can withstand a larger weight, when it is made into corrugated roofing.

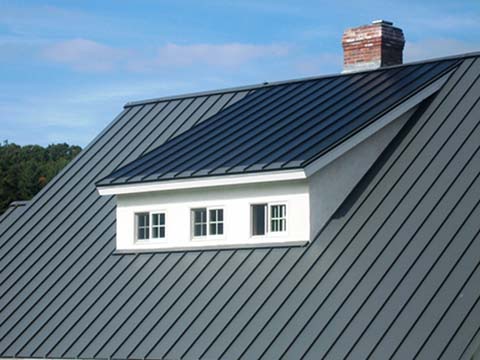

PPGI Roofing

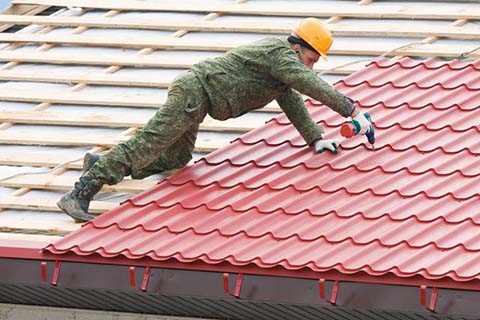

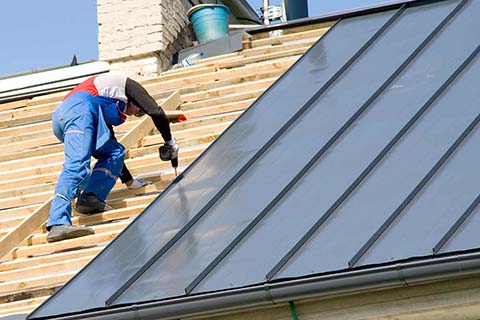

Installation of PPGI Roofing Sheets
No, it doesn’t. Metal roofing will not make a house hotter than other types of roof materials.
Let’s take PPGI for example. PPGI roofing sheets have a low thermal mass, which will reflect ultraviolet light and heat rather than absorbing. This means galvanized color coated roofing sheets can keep your home cooler on hot, sunny days. However, the heat reflection of metal roofs will be influenced by several factors:
Some coatings are certified to reflect sunlight, which can keep your roof cooler. For example, PVDF and HDP have great UV resistance, which is great for PPGI finish coating.
Dark colors are going to absorb more ultraviolet light than light colors. So the surface temperature of a dark-colored steel roof will be higher. For cooling aims, you can choose light colors. More than that, the color change of dark color will be more obvious than that of a light one.

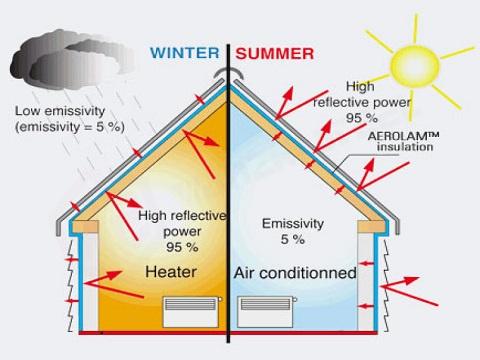

Insulation Performance Diagram
Thermal Reflectance of Roofs
The PPGI roofing sheet color is a great concern of customers. It can make your house impressive and practical. Below are some factors you need to consider when choosing colors.
In general, lighter-colored roofs reflect away heat rays to keep temperatures down, while dark-colored roofs absorb heat and keep houses warm. So take the climate you live in into consideration.
1. Suitable for surrounding colors
2. Suit the color of your house
Try to match the roofing color with the colors of other elements of the house like bricks, templates, stones, walls, etc. If you are not sure, please contact us for some professional advice.

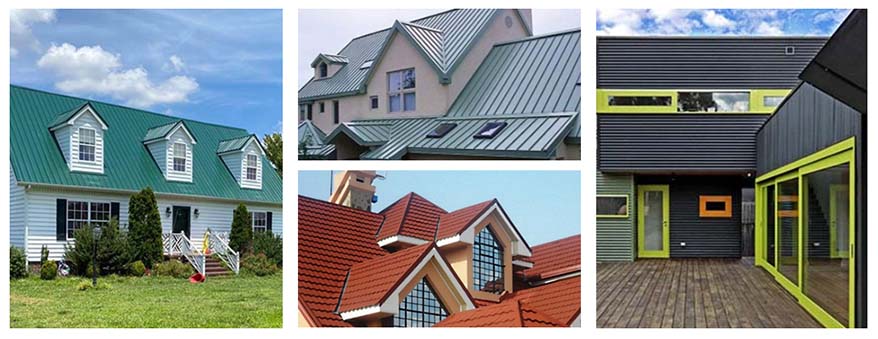

Architectural Style
By comparison, the color change of dark-colored roofs will be more obvious. For the aim of color retaining, you can choose light colors.

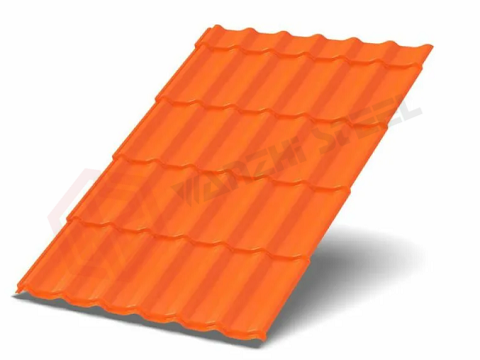

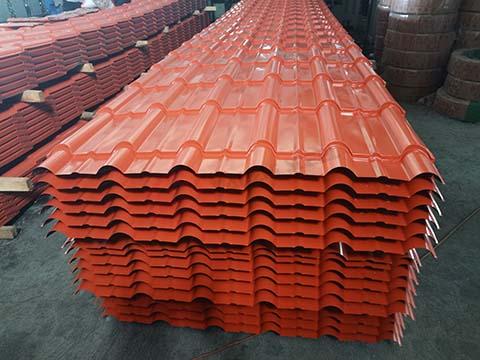

RAL 2004 PPGI Roofing Sheet

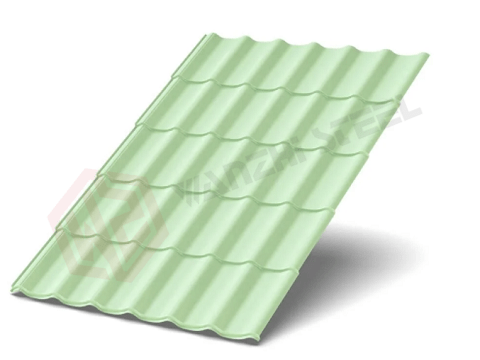

RAL 6019 PPGI Foofing Sheet
Blue Metallic PPGI Roofing Sheet
After decades of R&D, Yushun products are praised for their long-lasting, strong, and durable performance. We also offer a full range of PPGI roofing sheets to require customers’ needs. If you are interested in using colour coated GI roofing sheets in your buildings, please contact us for more details. Our professional teams will offer you a cost-effective and attractive solution according to your conditions. More than that, all products of We are tested and certificated so that you can trust us!
