Carbon steel plate is the most commonly used in construction and other applications that require durability and strength. We stocks a large inventory of carbon plate products for sale, from 2 to 20mm in thickness, and 600 to 3,000 in width. They are also available in different grades, including Q235, Q345, etc. Besides, we also provide various processing services including punching, bending, slitting, cutting, and other processing services. Welcome to contact us to know how we can meet your needs.

Carbon Steel Plate Specifications

Carbon Steel Plates

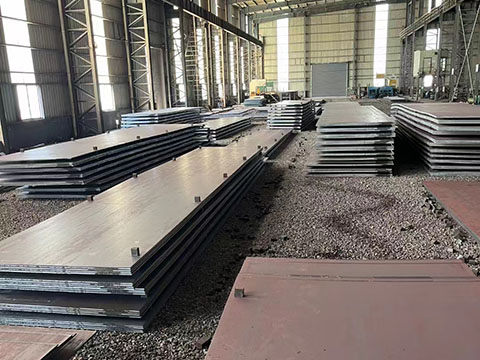

Carbon Plates at Factory

Features & Applications

Meduim Carbon Steel Plates

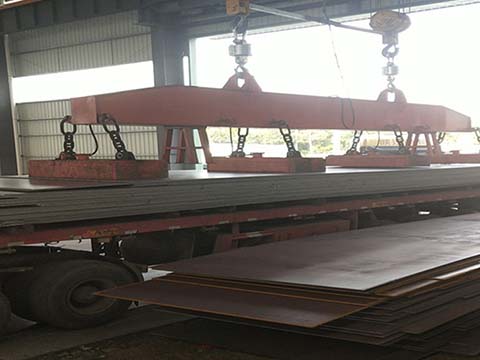

Loading to Truck

What Is Carbon Steel Plate?

Carbon steel is an iron-carbon alloy with a carbon content of 0.0218% to 2.11%. It also contains a small amount of silicon, manganese, sulfur, and phosphorus. Generally, the higher the carbon content, the greater the hardness and the higher the strength, but the lower the plasticity. According to the carbon content, carbon steel plate can be divided into low carbon steel (C ≤ 0.25%), medium carbon steel (C 0.25%-0.6%) and high carbon steel plate (C>0.6%).

How to Estimate the Weight of MS Steel Plate?

The weight can be calculated by the following formula: Weight = 7.85 * length (m) * width (m) * thickness (mm)

For example, if the MS plate is 3 m in length, 1.5 m in width, and 20 mm in thickness, the weight will be 760.5 kg. If you have any questions, please let us know.

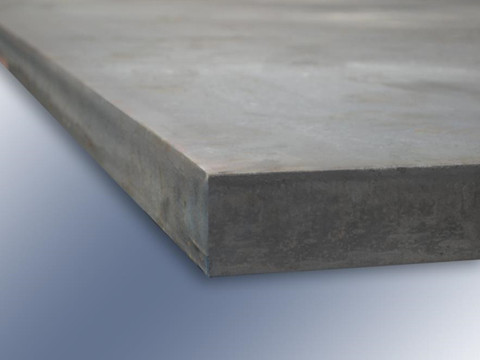

Thickness

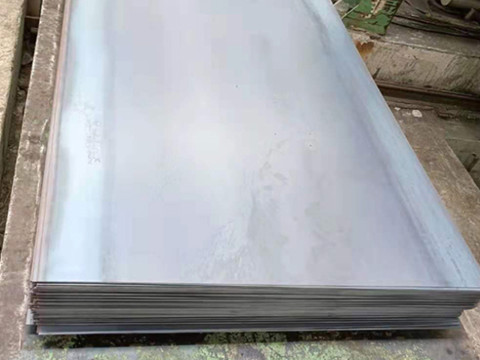

Smooth Surface

Different Types of Carbon Steel Plates

Generally, carbon steel sheet plates are available in different types depending on the carbon content, making method, thickness, and usage. Let’s have a review of them below.

Carbon Content

There are generally low, medium, high, and extra-high carbon steel plates according to the carbon content.
Low carbon: C content from 0.06% to 0.25%. It is also called a mild carbon plate.
Medium carbon: C content from 0.25% to 0.6%.
High carbon: C content from 0.6% to 0.95%.
Extra-high carbon: C content from 0.96% to 2.1%.
It should notice that as the content of carbon increases, the steel hardness increases, but the final plasticity reduces.

According to the thickness, it can be grouped into thin, medium, thick, and extra-thick carbon plates.

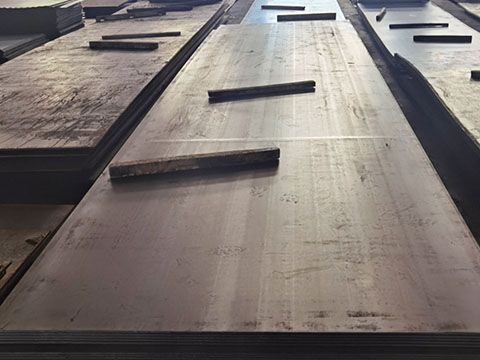

Mild Carbon Steel Plate

Carbon Steel Plates for Sale

Advantages and Disadvantages of Carbon Plates

Advantages

1. The raw material of carbon steel is easy to find, so it is usually low in production cost.
2. It has a robust construction, high ductility, easy fabricating, good abrasion resistance, and great versatility.
3. It is in a wide selection of thicknesses, sizes, grades, and types to choose from.
4. Being a cost-effective alternative to GI, GL, and SS steel.

Disadvantages

1. High carbon plates sometimes are too difficult to work with.
2. Relatively speaking, it is less attractive, and more susceptible to rust and corrosion.
3. When the temperature exceeds 200 degrees, the wear resistance of the carbon plate will deteriorate.
4. Its hardenability is not good, prone to deformation or cracking when doing so.

What Is Carbon Steel Sheet Plate Used for?

The carbon plate is commonly used in machinery, chemical, petroleum, boiler, heat exchanger, medical equipment, and other industries. For example, it can be used as:
1. Making building materials like carbon steel angle/coil/strip, mold bottoms, scaffoldings, machinery parts, I-beam, etc.
2. Construct bridges, highways, buildings, ships, offshore structures, power stations, storage tanks, boilers, pressure vessels, etc.
3. General fabrication like cabinets, enclosures, bucket parts, truck bodies, heat exchangers, condensers, steel repairing, etc.
4. Used as the base material of GI, and PPGI steel.

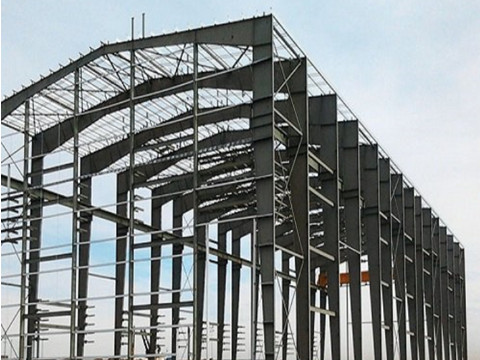

Sturctural Work

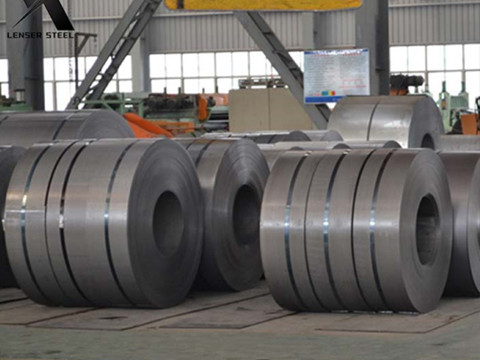

Carbon Steel Coils

Is Carbon Steel Easy to Rust?

Yes. Carbon steel does rust easily because it lacks the corrosion-resistant protective coating of its stainless steel counterpart. Although it’s stronger and more durable than stainless steel, carbon steel may rust and corrode fast when getting in touch with moisture. Once exposed to water and oxygen, the steel may start to see signs of rust in as little as 4-5 days.
Therefore, most carbon steel products are not suitable for coastal and highly corrosive environments.

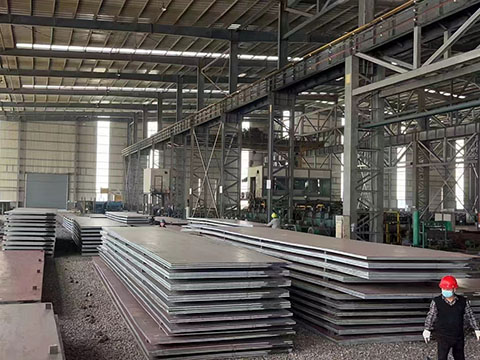

Carbon Steel Plate at Factory

Embossed Carbon Steel

Buy Premium Carbon Steel

Yu Shun metal material is a wholesale carbon steel plate manufacturer and supplier, with a factory in Hebei Province, China. Our factory is near Tianjin Port. We are an integrated company with steel production, trade, processing, and distribution. There is a large inventory of quality steel products with different materials, grades, finishes and specifications. Besides, we offer value-added services, such as cutting to size, slitting, punching, bending, etc. More than that, we will offer a competitive price for bulk orders. Welcome to contact us for a free sample.

Common Structural Steel Plate Grades Chart

High-quality Structural Plate Grades Chart
